Square D by Schneider Electric Homeline 40 Amp Mini Circuit Breaker, 2 Pole, 120/240V AC, 10kA Breaking Capacity, Plug in Mount, GFCI Class A, Residential Use (‎HOM240GFIC)

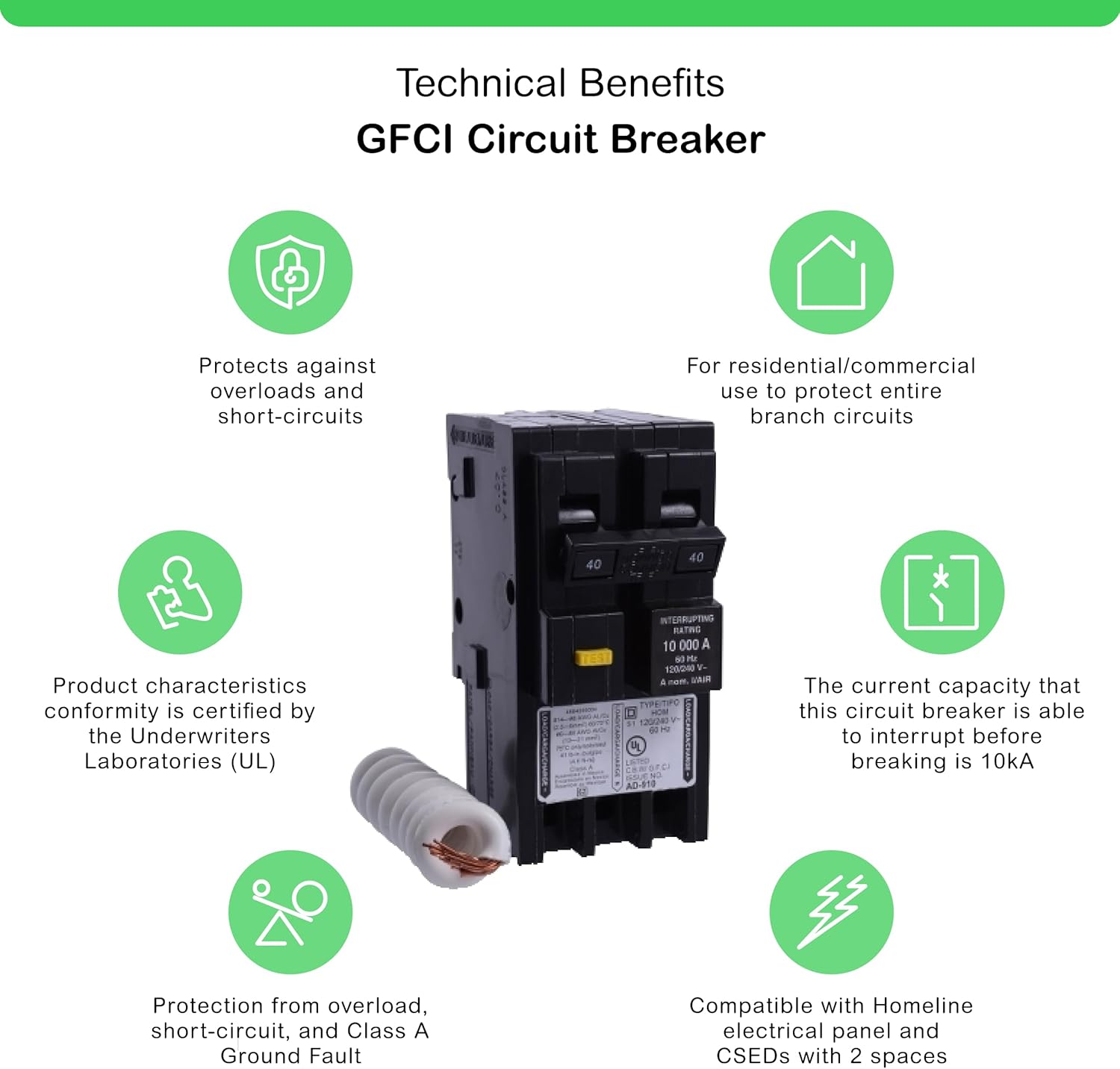

The Square D Homeline 40 Amp GFCI Circuit Breaker offers reliable residential circuit protection, safeguarding against overloads and short circuits. Designed for easy installation, its plug-on neutral design fits seamlessly into Square D Homeline load centers and CSEDs, taking up two spaces and allowing for a fast, hassle-free setup. This double-pole breaker operates on 120/240V AC circuits, commonly used for appliances which require larger amounts of power (clothes dryers, ranges, furnaces, air conditioners, etc.). This Homeline ground fault circuit breaker provides overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. Compact yet powerful, it features a 40A current rating, 10kA breaking capacity, and a space-saving design. UL-listed for safety and reliability, this circuit breaker is an essential addition to any residential electrical system. Dimensions: 3.13" H x 2" W x 2.98" D.

• RESIDENTIAL CIRCUIT PROTECTION: Square D Homeline Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection; Clamp terminal will accept wire with a wire range of 12 AWG to 4 AWG copper or aluminum wire

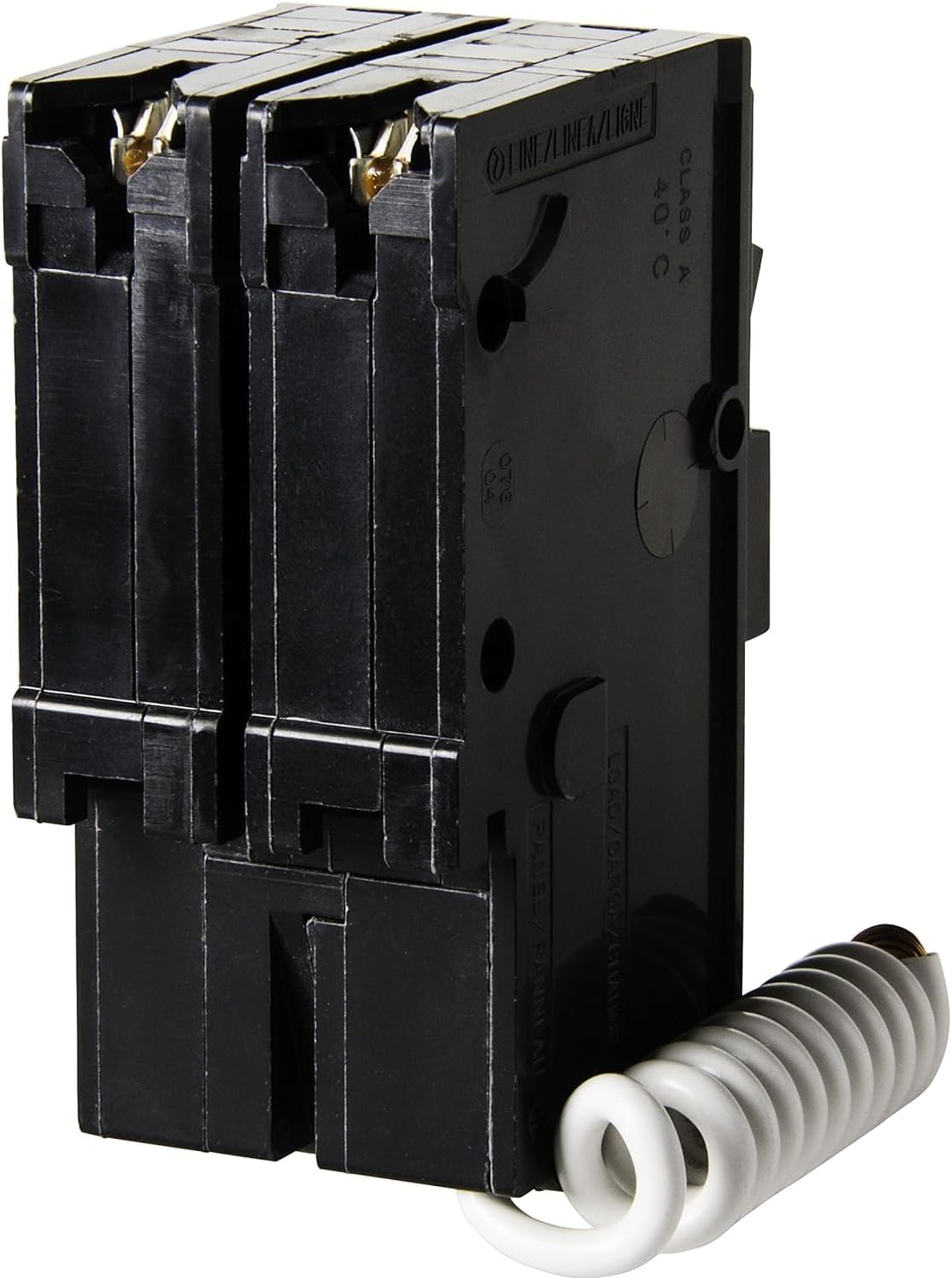

• EASY TO INSTALL: Pigtail neutral design connects the breaker's internal components to the neutral bar, facilitating power-up in Homeline load centers with two spaces; Breaker can also be used in plug on neutral load centers
• 40 AMP TWO-POLE CIRCUIT BREAKER: This circuit breaker delivers 60A protection with a two-pole configuration, ideal for larger appliances like dryers, ranges, and air conditioners that require 240V branch circuits
• GFCI PROTECTION: Ground fault circuit breaker provides overload and short circuit protection, combined with Class A ground fault protection; Class A ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more
• SPECIFICATIONS AND RATINGS: Dimensions - Height: 3.13 in (79.50 mm); Width: 2 in (50.8 mm); Depth: 2.98 in (75.69 mm); Current Rating - 40A; Voltage - 120/240V AC; Breaking Capacity - 10kA; 2 Poles; Certifications - UL-listed, HACR-rated
